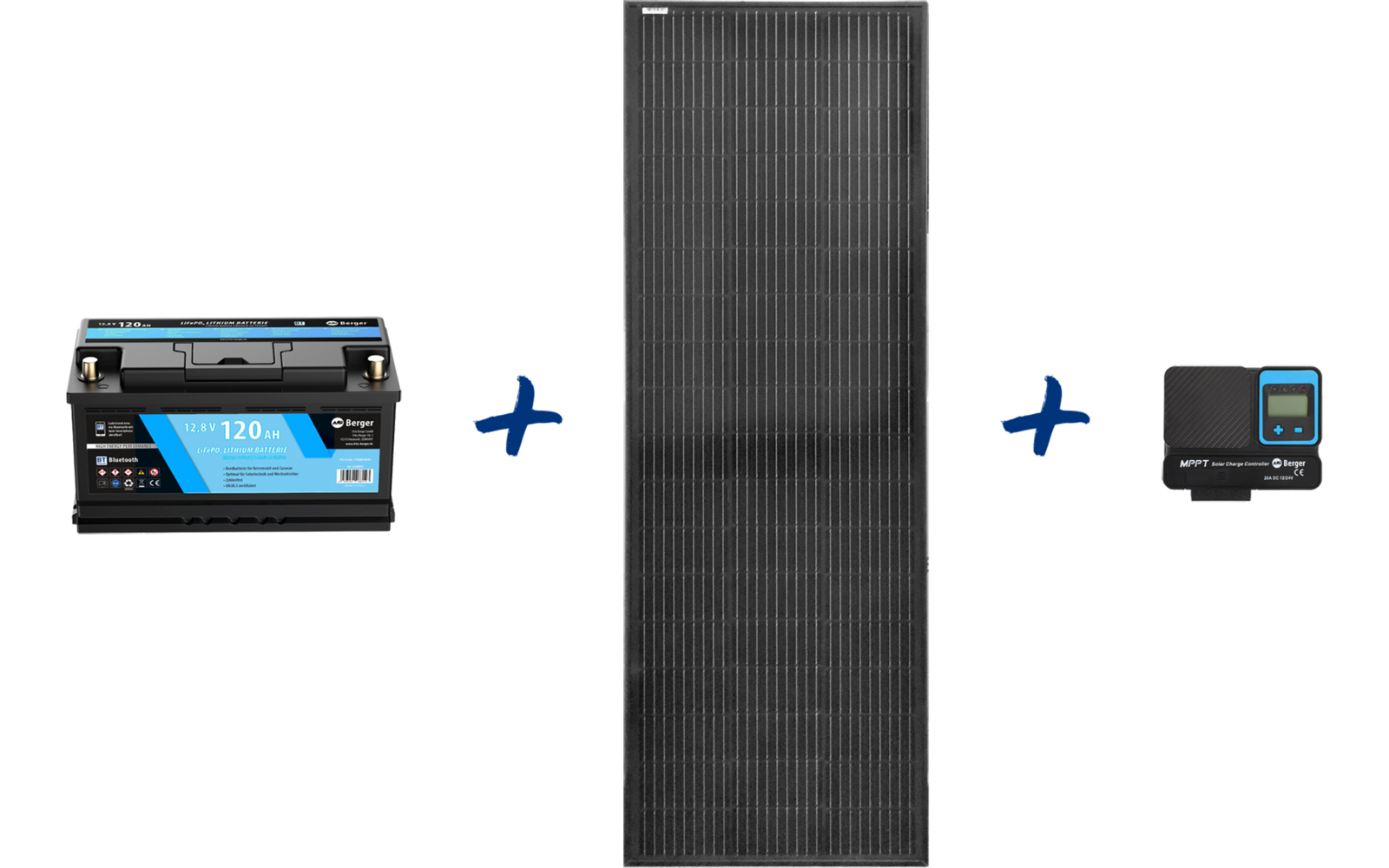

Berger LiFePO4 lithium battery 120 Ah 12 V with Bluetooth + Berger SX PRO MPPT solar charge controller 20 A + PX150 rigid solar panel 150 W in a set
Product details
| Smartphone monitoring via app - keep an eye on the status of your battery at all times | Charge controller continuously adjusts the voltage of the solar modules and increases energy yield | Ideal solar panel for permanent use on motorhomes and caravans | Solar panel resistant to extreme weather conditions | Solar panel with extremely high efficiency of approx. 23 % |
Product description
Self-sufficient on the road: 120 Ah LiFePO4 battery with Bluetooth, 150 W solar panel and 20 A MPPT solar charge controller in a powerful battery set
With a capacity of 120 Ah and a maximum continuous discharge current of 150 A, this battery is ideal for demanding applications in your motorhome and caravan. Its low weight and fast charging times ensure maximum efficiency. Thanks to Bluetooth, you can conveniently monitor the battery via your smartphone. The integrated battery management system (BMS) monitors and controls the battery. This optimizes the performance, service life and safety of the battery. This battery offers you the perfect combination of capacity, load tolerance, freedom from maintenance and safety - ideal for VW T5 and many other vehicles.
Details LiFePO4 lithium battery 120 Ah:
- Significantly lower energy losses than a comparable AGM or gel battery
- LiFePO4 technology for maximum service life
- High resistance to mechanical stress, e.g. off-road driving
- Short charging times for maximum efficiency
- Stable voltage: appliances such as toasters and air conditioners can be operated without any problems
- Bluetooth monitoring: Simply monitor the battery with your smartphone (iOS/Android)
- High cycle stability: Durable and reliable
- Significant weight advantage: over 50% lighter than lead batteries with the same design
- Versatile charging options: Charging with shore power and solar panel
- Integrated battery management system (BMS) for maximum safety through permanent control and monitoring of the battery
Technical data LiFePO4 lithium battery 120 Ah:
- Nominal voltage: 12.8 V
- Nominal capacity: 120 Ah
- Nominal energy: 1536 Wh
- Max. Continuous discharge current: 150 A
- Peak discharge current: 300 A (5-10 seconds)
- Recommended charging current: 60 A
- Maximum charging current: 120 A
- Recommended charging voltage: 14.6 V
- BMS cut-off voltage: < 15 V (3.75 V / cell)
- Charging temperature: 0 to 60 °C
- Discharge temperature: -20 to 60 °C
- Storage temperature: 0 to 40 °C
- BMS high temperature cut-out: 65 °C
- Restart temperature: 48 °C
- Protection class: IP56
- Dimensions incl. handles: 35.3 x 17.5 x 19 cm
- Weight: 11.5 kg
Guarantee:
We offer a 5-year Berger warranty on this product!
MPPT solar charge controller SX PRO 20 A
The MPPT charge controller is the ideal solution to maximize the efficiency of your solar system. It continuously adjusts the voltage of the solar modules to the optimum operating point and thus increases the energy yield by up to 30 % compared to conventional PWM controllers. A particular advantage is that it gives the battery a longer service life through precise charging. The solar charge controller is compatible with various battery types such as lithium, AGM and gel batteries.
Technical data SX PRO MPPT solar charge controller 20 A:
- Dimensions: 165 x 140 x 73 mm
- Pack size: 168 x 143 x 76 mm
- Automatic identification: 12/24 V
- Maximum PV input voltage: 150 V
- Working PV input: ≤ 110 V
- Material: Aluminum, PCB (printed circuit board), plastic
- Weight: 716 g
PX150 rigid solar panel -robust, reliable and specially developed for outdoor use
Our solar panels offer exceptional performance and are ideal for use in motorhomes and caravans. Developed for outdoor use, these panels are characterized by their resistance to extreme weather conditions - from strong sunlight, rain and snow to high wind speeds.
Thanks to the monocrystalline cells, the solar panels offer outstanding efficiency and energy yield, even in weak or diffuse sunlight. These cells enable a higher conversion rate of solar energy into electricity compared to polycrystalline cells and thus contribute to better performance in less optimal light conditions.
Details PX150 solar panel:
- Particularly high efficiency: around 23 % efficiency - optimum use of the sun's rays
- Cell type: monochrystalline - for a particularly high energy yield
- Weather resistance: UV-resistant and resistant to extreme weather conditions
- Easy installation: Perfectly suited to motorhomes and caravans.
Technical data PX150 solar panel:
- Output (Wp): 150 W
- Cell type: monochrystalline
- Energy yield/day (average): 600 Wh
- Nominal voltage (Vmp): 29.73 V
- Rated current (Imp): 5.03 A
- Open circuit voltage (Voc): 35 V
- Short-circuit current (Isc): 5.29 A
- Standard test conditions (STC): AM = 1.5, temperature=25℃, 1000 W/m²
- Dimensions (LxWxH): 157 x 55 x 3 cm
- Weight: 8.7 kg
Scope of delivery:
- 1 x Berger LiFePO4 lithium battery 120 Ah 12 V with Bluetooth + operating instructions
- 1 x Berger SX PRO MPPT solar charge controller 20 A + operating instructions
- 1 x Berger PX150 rigid solar panel
12 V parallel connection of several batteries
Any number of batteries of the same brand, type, age, capacity and state of charge can be connected in parallel to increase the capacity.
24 V/ 36 V/ 48 V series or series connection of several batteries
A maximum of 4 batteries (48V) of the same brand, type, age, capacity and state of charge can be connected in series to increase the output voltage.
Customer questions
Is the battery also suitable as a starter battery?
The Berger LiFePO4 battery is primarily designed for deep-cycle applications such as solar storage, motorhomes or on-board power supply. It is not intended for use as a starter battery, as starter batteries have different requirements in terms of short-term current and cold behavior. For optimum function and a long service life, we recommend using it as a supply or body battery.
Is the battery compatible with conventional chargers for AGM or gel batteries?
The Berger LiFePO4 battery is optimized for operation with LiFePO4-compatible chargers. Many modern chargers can be set to a lithium or LiFePO4 mode and can therefore be used without any problems. Conventional AGM or gel chargers without a suitable lithium characteristic curve may result in incomplete charging or reduced performance and service life. For the best possible performance, maximum safety and full capacity utilization, we therefore recommend using a charger with explicit LiFePO4 approval. Many high-quality chargers for AGM or gel batteries have a lithium mode or are approved for LiFePO4 batteries according to the manufacturer. Please check the charger manufacturer's specifications.
When is the battery heater activated?
The heating function is activated automatically as soon as the battery temperature is ≤ 0 °C during the charging process. At this point, the BMS (battery management system) interrupts the charging process and gives priority to the heating. As soon as the temperature reaches +5 °C, the charging process continues automatically. If the temperature rises above 10 °C, the heating function is deactivated.
Does my charger need to be converted?
In many cases, no conversion is necessary. Many modern AGM or gel chargers have a lithium or LiFePO4 mode or can be set accordingly. If your charger does not offer a setting, we recommend using a LiFePO4-enabled charger in order to utilize the full capacity and service life of the battery.
