Votronic VZE Sirius CI Multi-Panel System with Smart Shunt, Rated Current 100 A
Votronic VZE Sirius CI Multi-Panel System with Smart Shunt, Rated Current 200 A
Votronic VZE Sirius CI Multi-Panel System with Smart Shunt, Rated Current 400 A
Item no: 519493Item no: 422963Item no: 828422
484,70 €
Prices incl. statutory VAT,
free shipping
Get up to 5% Bonus with the Berger Loyalty Card
€ Bonus with the Berger Loyalty Card
509,80 €
Prices incl. statutory VAT,
free shipping
Get up to 5% Bonus with the Berger Loyalty Card
€ Bonus with the Berger Loyalty Card
551,30 €
Prices incl. statutory VAT,
free shipping
Get up to 5% Bonus with the Berger Loyalty Card
€ Bonus with the Berger Loyalty Card
Availability:
Delivered within up to 2 weeks
Availability:
Delivered within up to 2 weeks
Availability:
Delivered within up to 2 weeks
Product details
| Central Multi-Panel System for Monitoring and Control in a Motorhome | Battery computer with Smart Shunt CI for state of charge, current, and remaining capacity | Display of battery, solar, fuel tank, and temperature data | CI-Bus for integrating compatible Votronic system components |
Product description
Central Control for Power, Tanks, and Onboard Systems
The Votronic VZE Sirius CI is a multi-panel system for the central monitoring and control of key functions in a motorhome. It displays battery and solar data, fuel levels, temperatures, and other onboard information. The complete set is available with a Smart Shunt CI rated for 100 A, 200 A, or 400 A.Details:
- Battery computer for monitoring the onboard battery
- Displays battery voltage, charge and discharge current, capacity, and remaining runtime
- Displays starter battery voltage
- Solar computer for compatible Votronic solar charge controllers and VBCS Triple
- Displays solar power output, solar current, charged capacity, and solar energy
- Level indicator for up to four tanks, including fresh water, gray water, and black water tanks
- Display of indoor and outdoor temperature when sensors are connected
- Input for detecting shore power
- Relay output for a fresh water pump
- Control of compatible inverters, as well as chargers and triple chargers, via CI-Bus
- Integrated 24-hour clock
- Bluetooth module for compatible mobile applications
- Product type: Multi-panel system for motorhomes
- System: Votronic Central Electrical System VZE Sirius CI
- Vehicle electrical system voltage: 12 V / 24 V
- Display: Backlit graphic display
- Bluetooth: built-in
- CI-Bus: Yes
- Battery monitor: yes
- Solar computer: yes
- Tank monitoring: up to 4 tank sensors
- Additional analog input: 0–30 V
- Shore power detection: yes
- Pump control: up to 16 A
- Color: black
- Dimensions of VZE Sirius CI: 201 × 65 × 25 mm
- Weight of VZE Sirius CI: 122 g
- Dimensions of Sirius IO: 105 × 55 × 32 mm
- Weight of Sirius IO: 120 g
- Dimensions of Smart Shunt CI: 135 × 32 × 44 mm
- Smart Shunt CI 100 A
- Rated current: 100 A
- Conductor cross-section: 25 mm²
- Weight: 254 g
- Smart Shunt CI 200 A
- Rated current: 200 A
- Ground strap: 35 mm²
- Weight: 256 g
- Smart Shunt CI 400 A
- Rated current: 400 A
- Ground strap: 75 mm²
- Weight: 260 g
- 1x Votronic VZE Sirius CI display

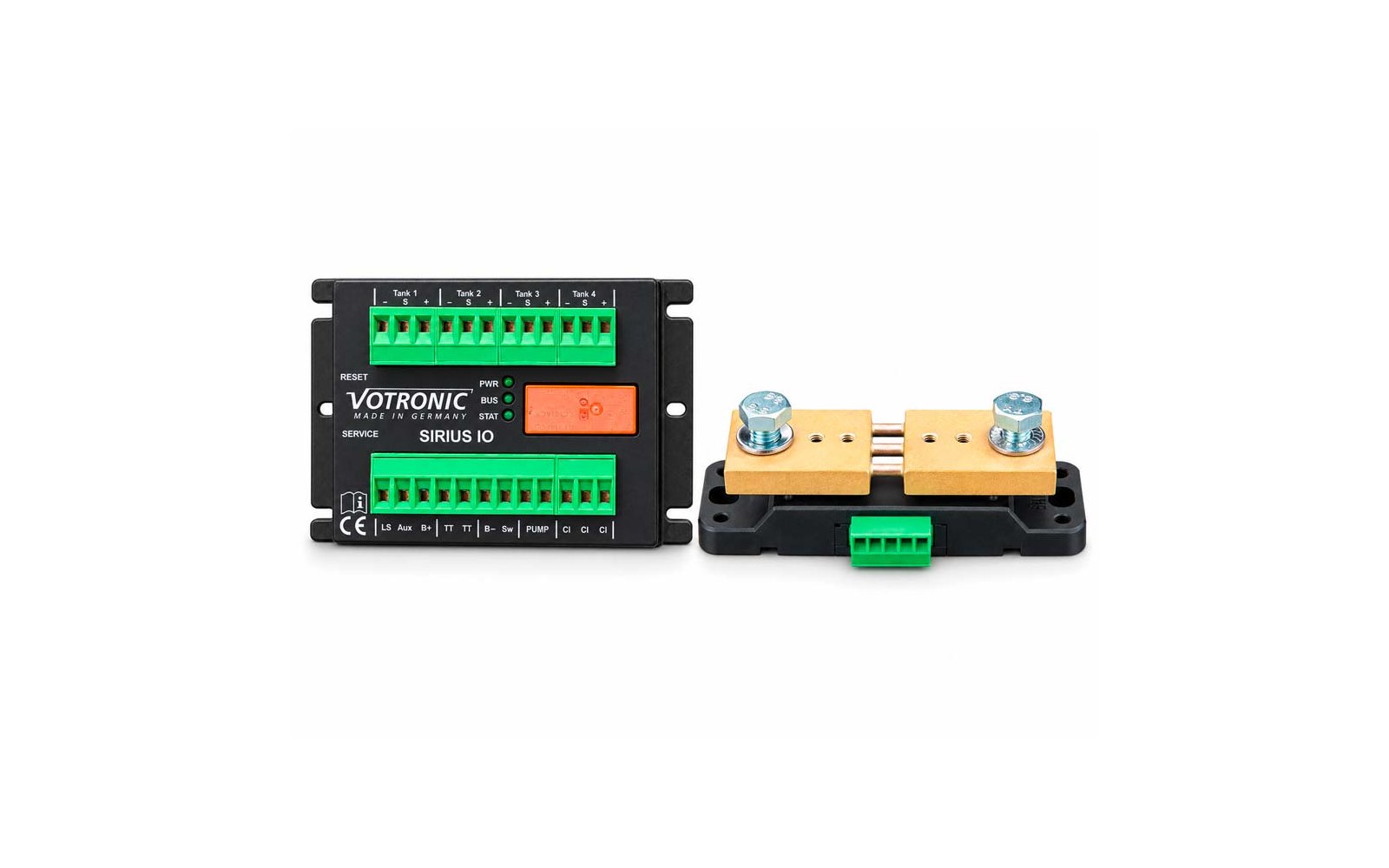

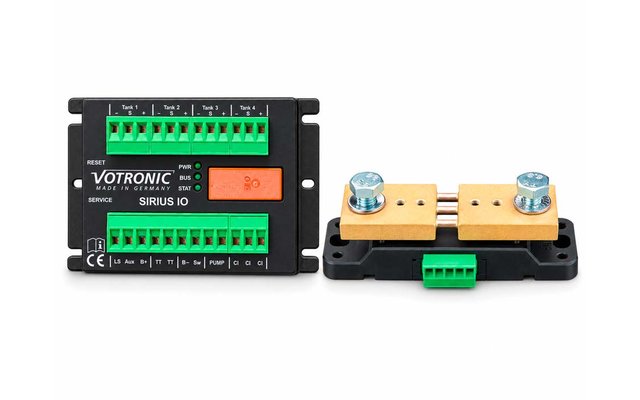

- 1x Votronic Sirius IO
- 1x Votronic Smart Shunt CI in the selected version
- 1x Ground lead compatible with the selected model
- 2x Temperature sensors
- 1 set of mounting screws
Features
| Design | Rated current: 100 A |
| ean | 4250683619358 |
| Manufacturer Article No. | 5834 |
Features
| Design | Rated current: 200 A |
| ean | 4250683619365 |
| Manufacturer Article No. | 5835 |
Features
| Design | Rated current: 400 A |
| ean | 4250683619372 |
| Manufacturer Article No. | 5836 |
