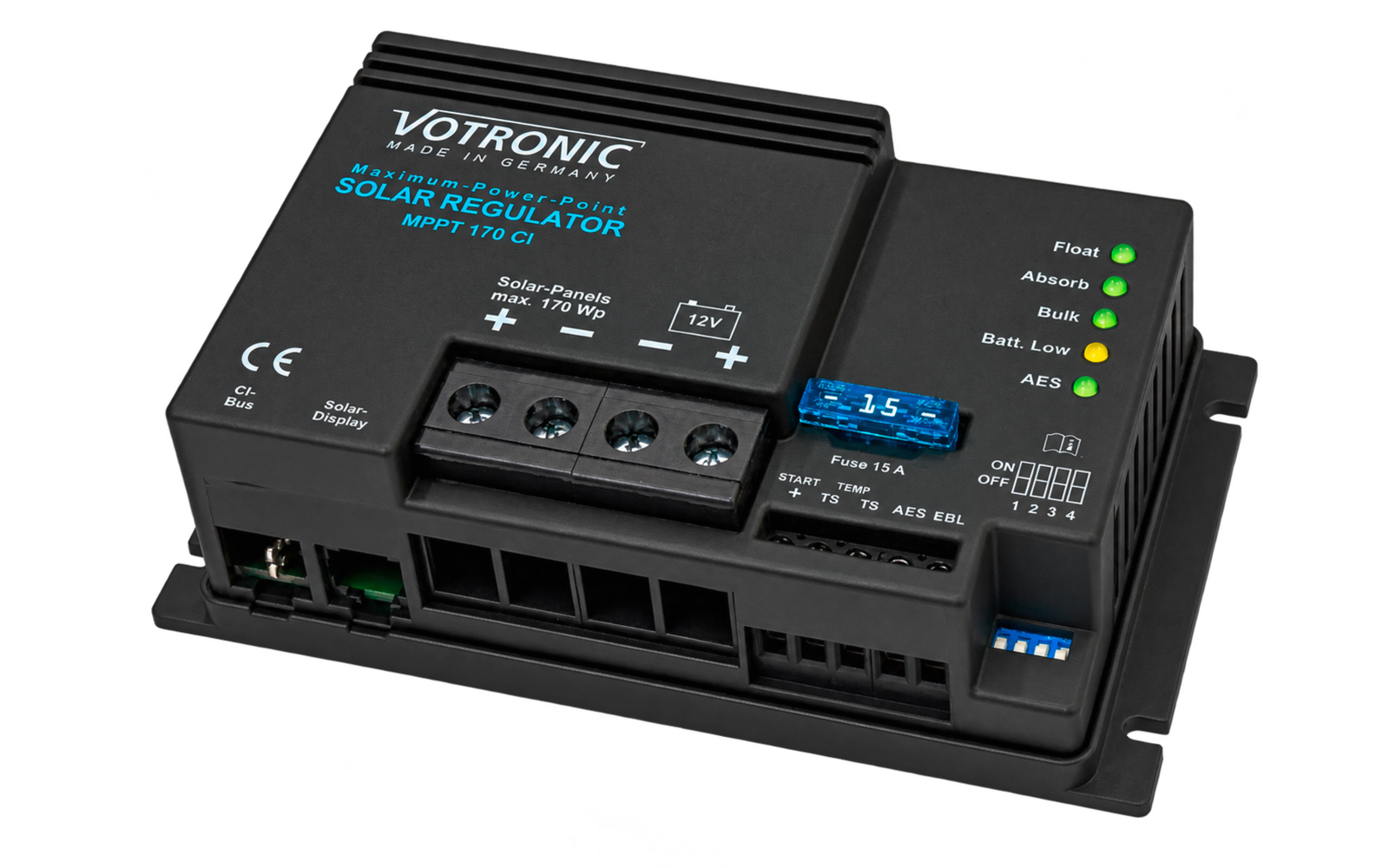

Votronic MPPT 170 CI Solar Charge Controller with CI-Bus, 12 V, 170 Wp

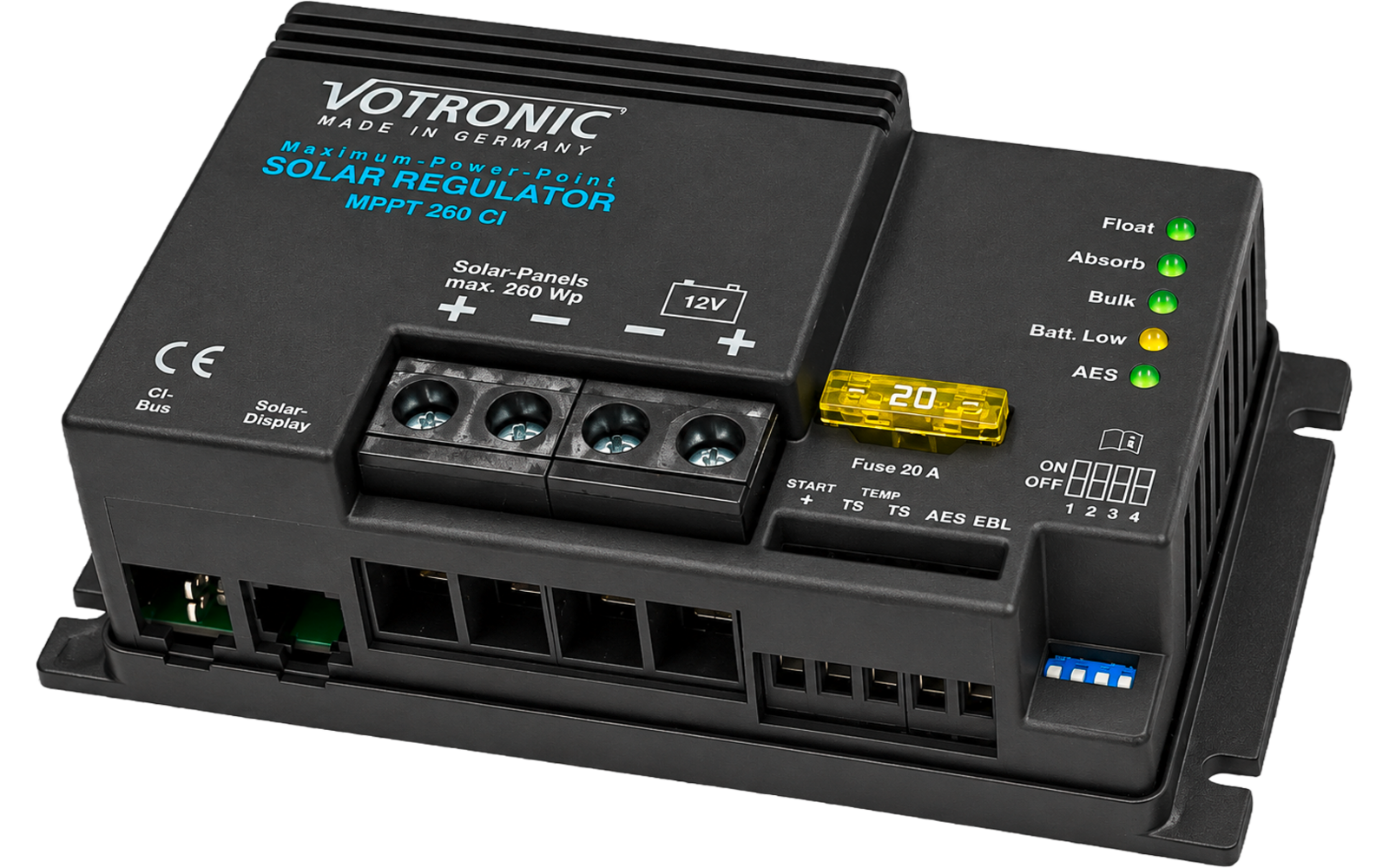

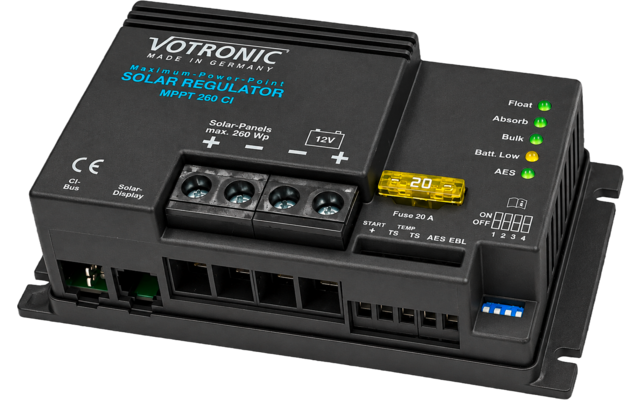

Votronic MPPT 260 CI Solar Charge Controller with CI-Bus, 12 V, 260 Wp

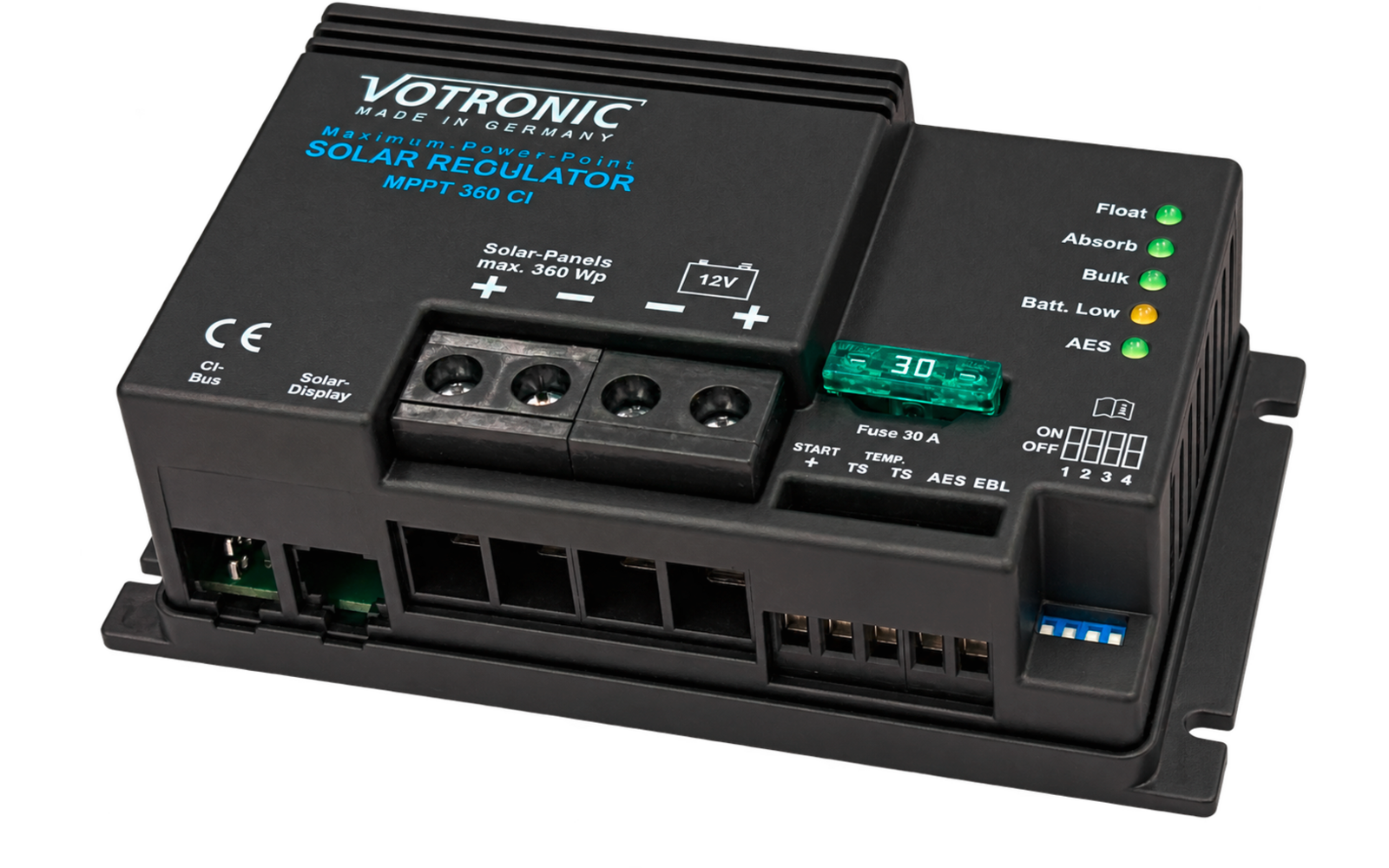

Votronic MPPT 360 CI Solar Charge Controller with CI-Bus, 12 V, 360 Wp

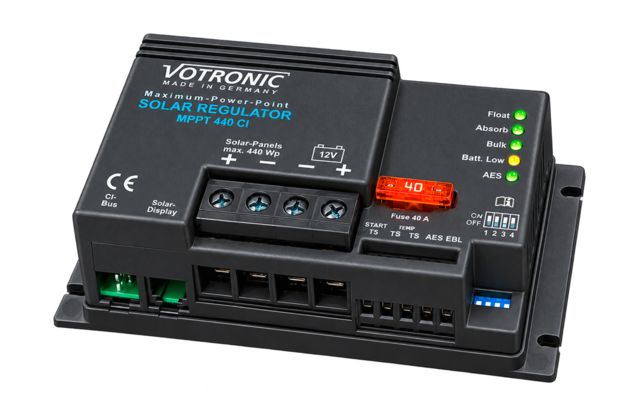

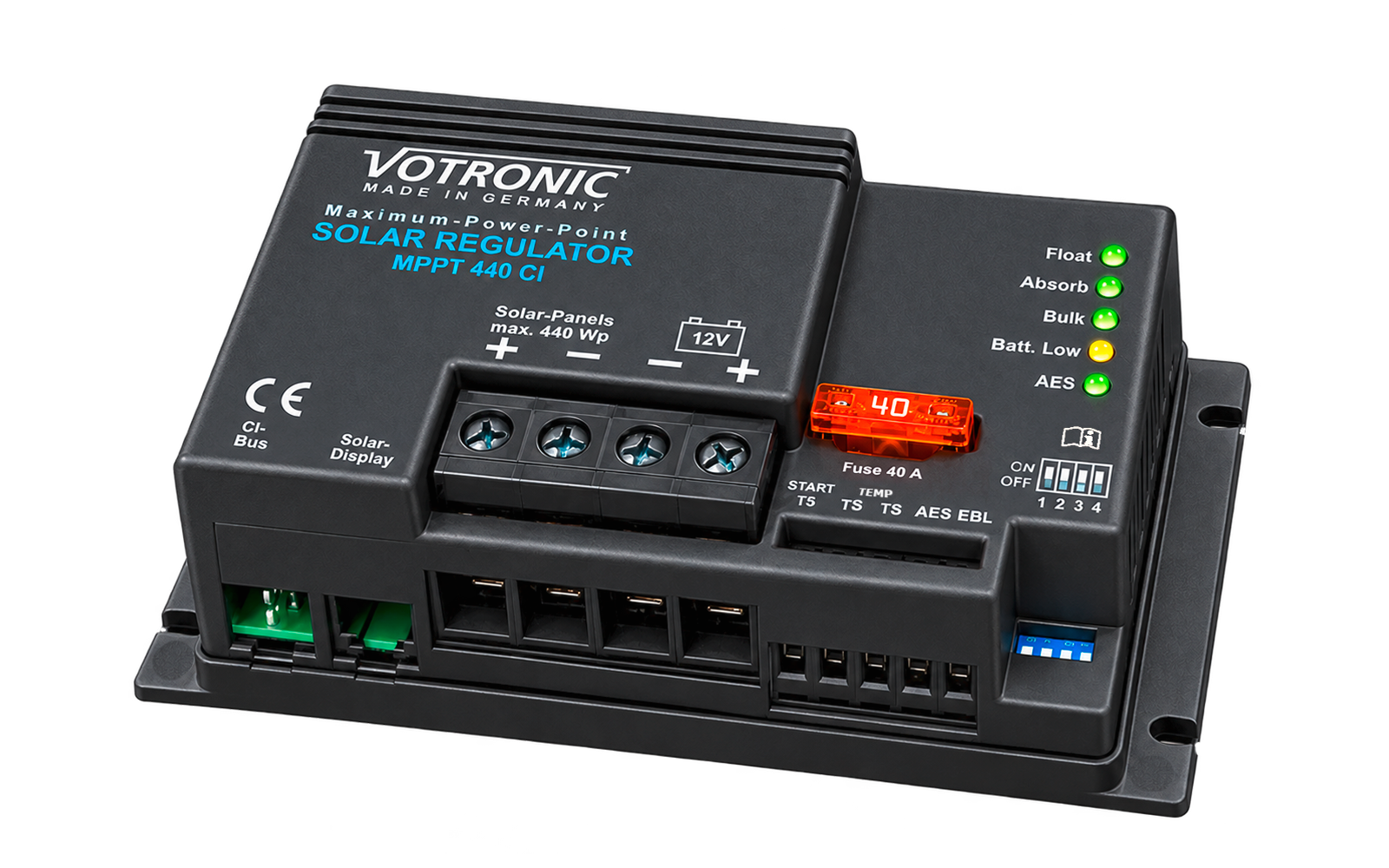

Votronic MPPT 440 CI Solar Charge Controller with CI-Bus, 12 V, 440 Wp
Item no: 429738Item no: 543038Item no: 100058Item no: 898658
141,10 €
Prices incl. statutory VAT,
free shipping
Get up to 5% Bonus with the Berger Loyalty Card
€ Bonus with the Berger Loyalty Card
203,50 €
Prices incl. statutory VAT,
free shipping
Get up to 5% Bonus with the Berger Loyalty Card
€ Bonus with the Berger Loyalty Card
232,40 €
Prices incl. statutory VAT,
free shipping
Get up to 5% Bonus with the Berger Loyalty Card
€ Bonus with the Berger Loyalty Card
317,10 €
Prices incl. statutory VAT,
free shipping
Get up to 5% Bonus with the Berger Loyalty Card
€ Bonus with the Berger Loyalty Card
Availability:
Delivered within up to 2 weeks
Availability:
Delivered within up to 2 weeks
Availability:
Delivered within up to 2 weeks
Availability:
Delivered within up to 2 weeks
Our Recommendation
Product details
| MPPT Charging Technology for 12-V Solar Systems and Lead-Acid, Gel, AGM, and LiFePO4 Batteries | Available for solar modules up to 170, 260, 360, or 440 Wp, depending on your selection | CI-Bus connection for integration into compatible vehicle systems | Suitable for motorhomes, travel trailers, marine, and stationary solar systems |
Product description
MPPT Solar Controller for Regulated Charging of Your Onboard Battery
The Votronic MPPT CI solar controller connects the solar panels to the 12-V service battery and continuously determines the optimal operating point of the solar system for regulated battery charging.
Details:
The Votronic MPPT CI solar controller connects the solar panels to the 12-V service battery and continuously determines the optimal operating point of the solar system for regulated battery charging.
Details:
- MPPT stands for Maximum Power Point Tracking
- Main charging output for the onboard or service battery
- Additional output for trickle charging the starter battery
- CI-Bus connection for displaying solar data via compatible vehicle systems
- Output for EBL solar power display
- Connection option for compatible Votronic displays and Bluetooth accessories
- Connection for optional battery temperature sensor
- Suitable for motorhomes, travel trailers, boats, and stationary off-grid systems
- Battery system: 12 V
- Battery technologies: Lead-acid, gel, AGM, LiFePO4
- Charging method: IU1oU2
- Charging programs: 8, including 3 for lead-acid, gel, and AGM batteries, and 5 for LiFePO4 batteries
- Max. solar open-circuit voltage (Voc): 60 V
- Ambient temperature: -20 to +45 °C
- Dimensions including mounting flanges: 131 × 77 × 40 mm
- MPPT 170 CI
- Solar module power: 40–170 Wp
- Max. solar module current: 10 A
- Max. charging current for the onboard battery: 13 A
- Max. charging current for starter battery: 1 A
- Weight: 225 g
- MPPT 260 CI
- Solar module power: 40–260 Wp
- Max. solar module current: 15 A
- Max. charging current for the onboard battery: 18.5 A
- Max. charging current for starter battery: 1 A
- Weight: 235 g
- MPPT 360 CI
- Solar module power: 50–360 Wp
- Max. solar module current: 21 A
- Max. charging current for the onboard battery: 26 A
- Max. charging current for starter battery: 1.5 A
- Weight: 285 g
- MPPT 440 CI
- Solar module power: 50–440 Wp
- Max. solar module current: 26 A
- Max. charging current for the onboard battery: 32 A
- Max. charging current for starter battery: 1.5 A
- Weight: 285 g
- 1x Votronic MPPT CI Solar Controller
- 1x Installation and User Manual
Features
| Type of solar panel | Solar accessories |
| Output | 170 Wp |
| ean | 4250683619242 |
| Manufacturer Article No. | 1713 |
Features
| Type of solar panel | Solar accessories |
| Output | 260 Wp |
| ean | 4250683619259 |
| Manufacturer Article No. | 1718 |
Features
| Type of solar panel | Solar accessories |
| Output | 360 Wp |
| ean | 4250683619266 |
| Manufacturer Article No. | 1723 |
Features
| Type of solar panel | Solar accessories |
| Output | 440 Wp |
| ean | 4250683619273 |
| Manufacturer Article No. | 1731 |
