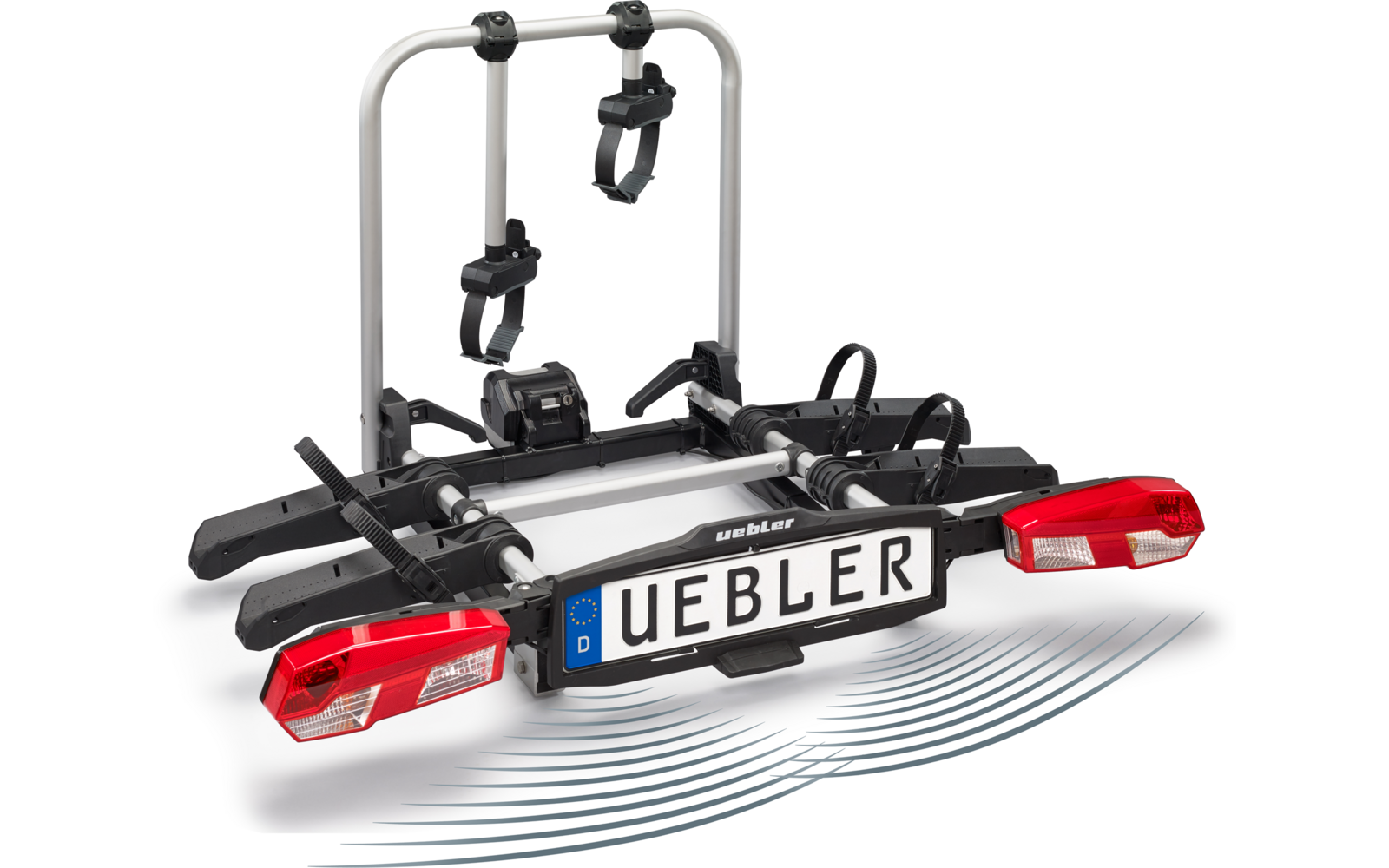

Uebler H21 Z-DC Bike Rack with Parking Assist, E-Bike Compatible, Holds 2 Bikes

Bike Racks for Van-Style Trucks, E-Bikes, and Vehicles with a Low Tailgate

With the Uebler H21 Z-DC, you can transport two bicycles or e-bikes on the trailer hitch. The wide folding angle is particularly well-suited for panel vans with swing doors and vehicles with a low-mounted tailgate. Thanks to its foldable design, the tow hitch carrier can be stowed away compactly after use, while the integrated Distance Control parking assist helps with maneuvering.

Details:

• Patented leverless IQ quick-release fastener for effortless, tool-free installation
• Removable spacers with toothed strap and one-handed operation
• Ratchet system for securely fastening bicycle tires to the wheel rails

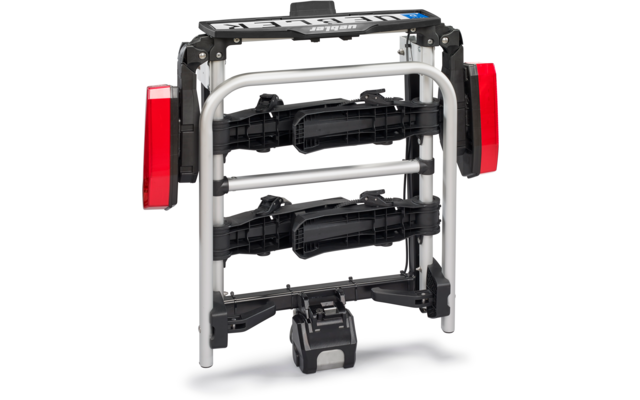

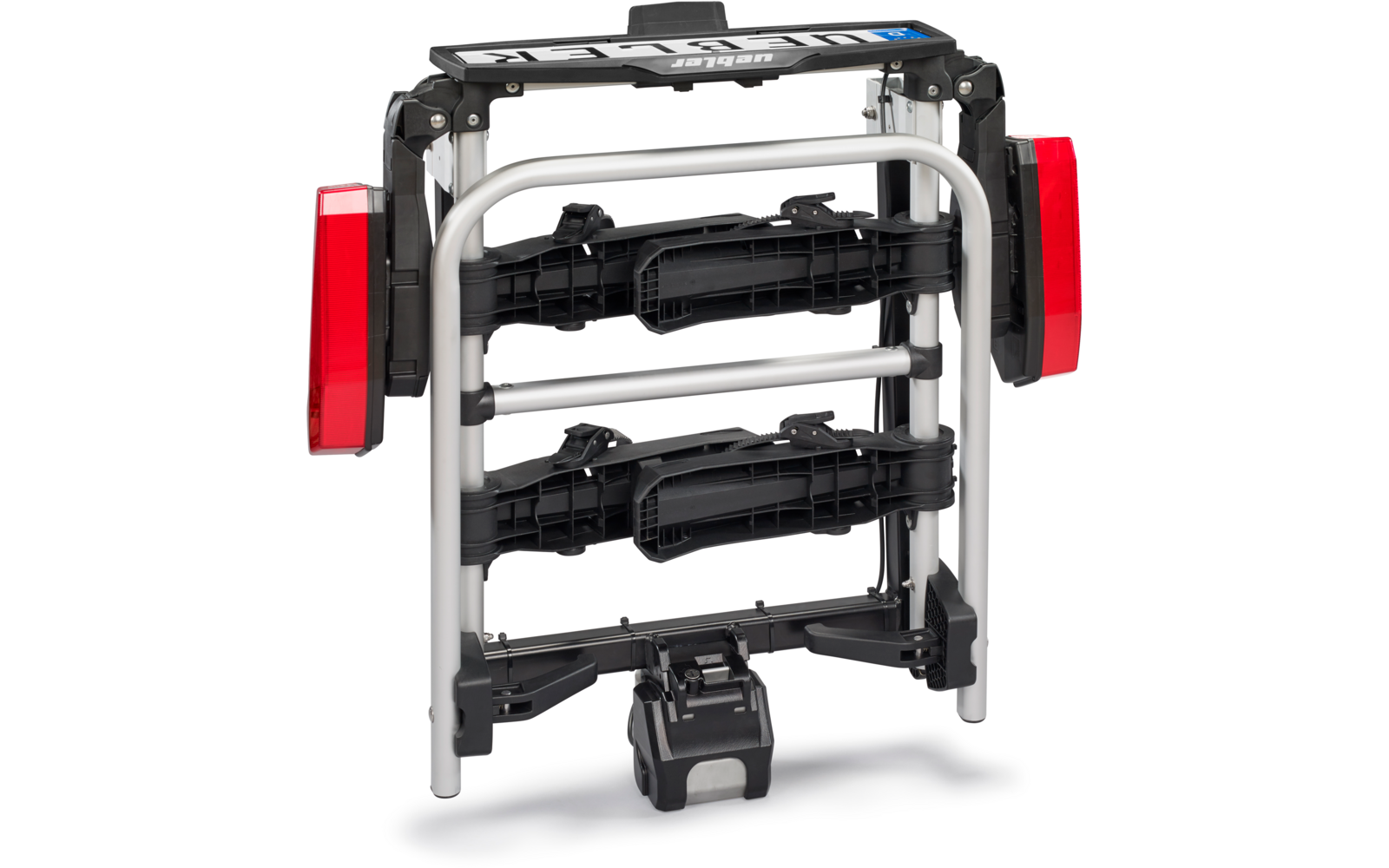

• Foldable wheel rail and light unit for compact storage
• Folding function conveniently activated via a foot lever, even with bicycles mounted
• Quick-release lever for securing the carrier frame
• Keyed-alike anti-theft lock for the rack and bicycles

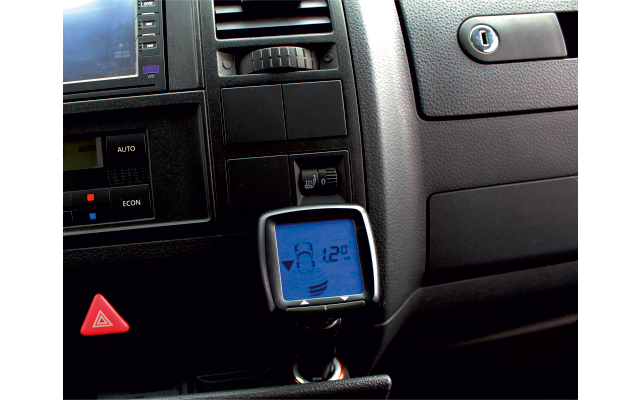

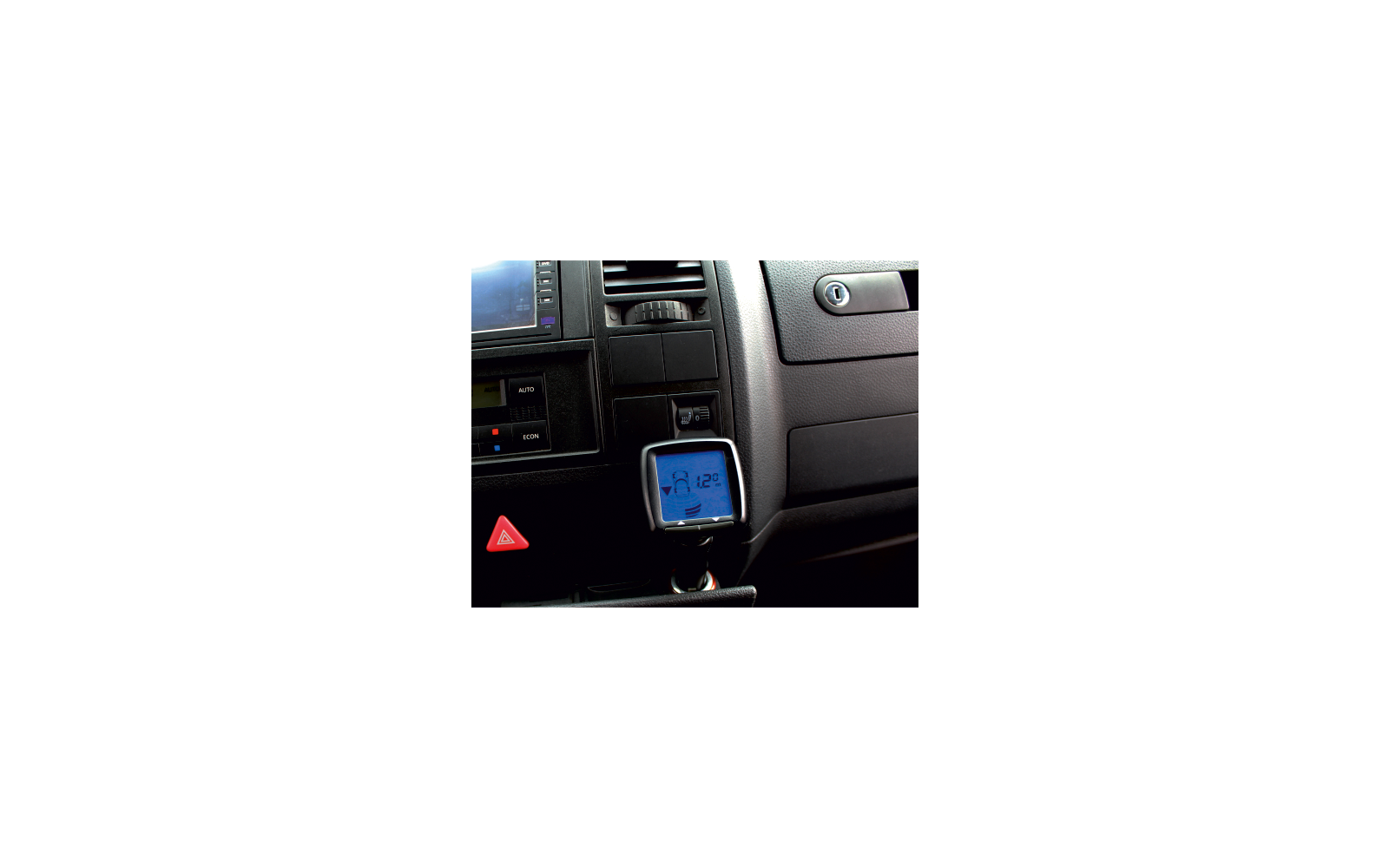

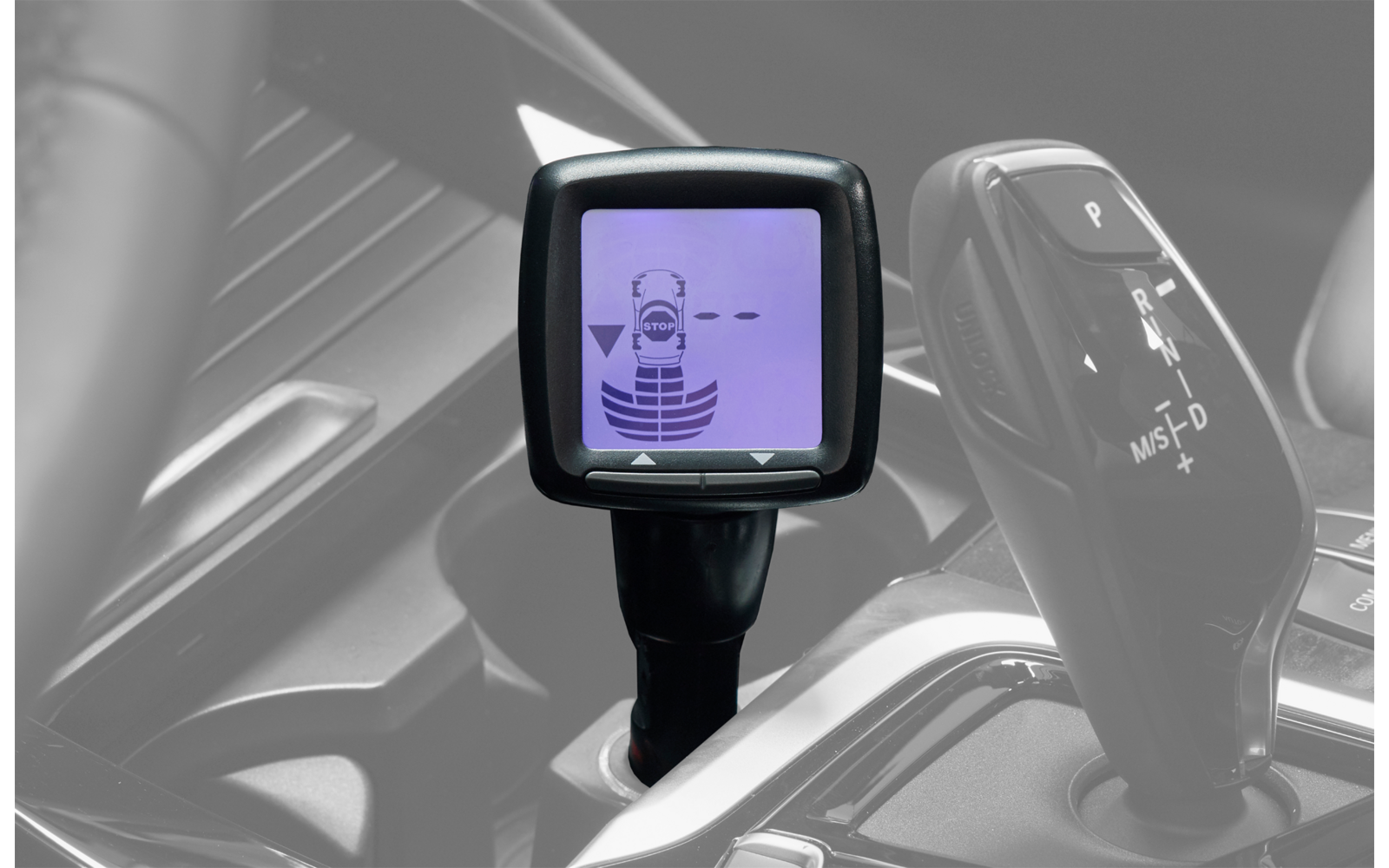

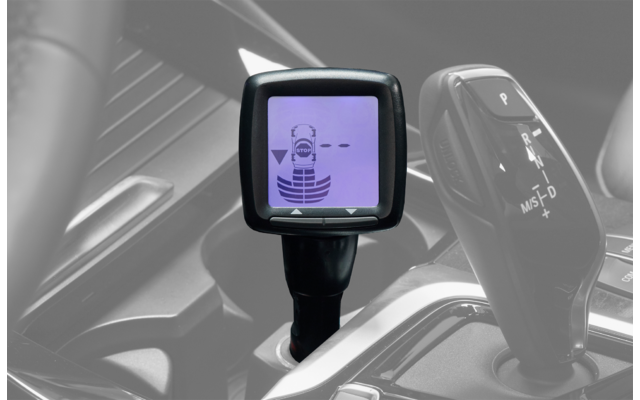

• Distance Control parking aid with visual and audible obstacle warnings
• When folded to 90°, the bicycle handlebars may come into contact with the ground, depending on their width

Technical Specifications:

• Number of bicycles: 2
• E-bike compatible: yes
• Folding angle: 90°
• Parking assist: Distance Control
• Foldable: yes
• Dimensions (WxHxD): 128 x 73 x 88 cm
• Packed dimensions (WxHxD): 83 x 21 x 85 cm
• Product weight: 18 kg
• Maximum load capacity: 60 kg
• Maximum load per wheel track: 30 kg
• Maximum wheelbase: 130 cm
• Maximum tire width (standard): 3 inches, approx. 7.6 cm
• Maximum tire width with optional timing belt conversion kit: 4.5 inches, approx. 11.5 cm
• Track spacing: 240 mm
• Round tube frame mounting: up to 115 mm
• Frame mounting for rectangular tubing: up to 120 x 80 mm
• Frame mounting for square tubing: up to 95 x 95 mm
• Distance from center of ball head to center of first wheel rail: 30 cm
• Mounting height of the lock above the ball head: 36 mm
• Minimum diameter of the coupling neck below the ball: 28.5 mm
• Bicycles lockable: yes
• Lockable carrier: yes
• Country of manufacture: Germany

Package contents:

• 1x H21 Z-DC tow bar rack
